Bright led emergency spot lights with battery EM303
Product Overview
Bright led emergency spot lights with battery EM303
Relative Download
DOWNLOAD
2024 Winner of the German IF Industrial Design Award & International MUSE Design Award 2023
EM303 Product Features:
| >> Rated working voltage: 220-240V, 50/60Hz. |
| >> Working loads on mains power: Max 3W |
| >> Emergency Power: 2W/2.5W/3W |
| >> Lumileds LED chips, CCT 5,700K |
| >> Polycarbonate enclosure housing and die casting heat sink |
| >> Battery view design with transparent cover |
| >> D63/D80/D100 Classification as per AS/NZS 2293.3 |
| >> Battery capable to replace upon requirements |
| >> Precise optical design to compliant with IEC EN1838 requirement |
| >> Ultra-low stand-by power consumption. |
| >> Self-contained luminaries with manual test,self test, and DALI test. |
| >> Em+Smartch™ battery charge technologies : over-charge, over-current, short-circuit and deep discharge protection for battery |
| >> Two color optional: white and black |
| >> Recessed ceiling mounted |
| >> Poweriod™ LiFePO4 battery pack with standard 5 years warranty |
| >> DALI 2.0 version is available upon request. |
1.Automatically switch on emergency lighting: Built-in intelligent sensing system. Once the power failure is detected, the lighting mode will be turned on automatically without human intervention.EM303 can quickly restore the brightness and provide multiple emergency brightness levels such as D63, D80 and D100, which not only protects the safety of individuals and their belongings, but also provides daily security.
2.High Brightness LED; Adopting high brightness LED lamp beads, the light is even and soft, and the irradiated area is large.
Energy-saving and environmentally friendly: LED light source with low energy consumption and long lifespan, reducing energy consumption and replacement costs. Supported by Emtrons Poweriod™ LiFePO4 6.4V 2.0Ah battery pack, it can guarantee at least three (3) hours of emergency battery life.
3. Product Colour: The EM303 is available in white RAl 9016 and black RAL 9005 to suit a wide range of users.
Also by integrating the powerful DAL-2.0 protocol, the EM303 can effortlessly display different colour patterns, such as a green indicator when the system is normal and a red indicator when the battery is faulty. In short, the user can determine the status of the light at a glance.
4.EM303 is a rare DALl-2.0 LED emergency lighting fixture product in the industry, which achieves better compatibility, interoperability and dimming. EM303 separates the power supply and batteries into separate spaces to protect the batteries from heat, in addition, EM303 adopts Emtrons' patented heat sink, which effectively radiates the heat to the surrounding environment and provides LED lights with Provide heat dissipation support to prolong the service life and keep the light colour stable.
Installation:
Please follow the drawings for specific operations, and you can also contact us if you do not understand!
United Kingdom
Tel：
+44 2084 323 088 +44 (0) 7908 2626 32
Add：
291 Brighton Road, South Croydon, CR2 6EQ, United Kingdom
E-mail：

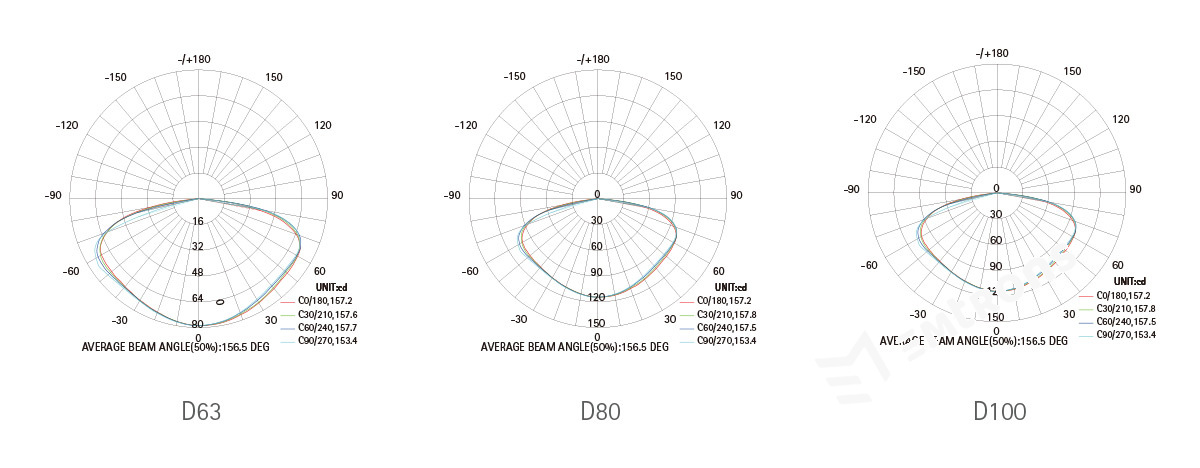

Photometric data :
Application Scenarios:
Supermarkets, hotels, hospitals, schools, stadiums, production workshops, etc., the installation location of the main evacuation path, such as corridors, stairwells, exits, etc., set up sufficiently bright LED emergency lighting fixtures.
Sudden power outages automatically activate the emergency lighting becomes an indispensable security partner, the use of LED long-lasting features make this emergency lighting spotlight in critical moments can continue to provide light, can guarantee at least three (3) hours of emergency duration.
- Product Description
- 图标
-
- Commodity name: Bright led emergency spot lights with battery EM303
2024 Winner of the German IF Industrial Design Award International MUSE Design Award 2023 This EM303 led emergency lights with battery backup features a circular design with an integrated driver and battery in one piece to form a complete emergency lighting fixtures. Unlike traditional fully sealed electronic drivers, Emtrons technicians have designed a half-wrapped transparent battery compartment so that installers can check the status of the emergency batteries and repair or replace them in a timely manner. The EM303 series comes with 2W D63, 2.5W D80 and 3W D100 to comply with both European EN1838 and AS/NZS2293 as D50 emergency.
2024 Winner of the German IF Industrial Design Award & International MUSE Design Award 2023
EM303 Product Features:
>> Rated working voltage: 220-240V, 50/60Hz. >> Working loads on mains power: Max 3W >> Emergency Power: 2W/2.5W/3W >> Lumileds LED chips, CCT 5,700K >> Polycarbonate enclosure housing and die casting heat sink >> Battery view design with transparent cover >> D63/D80/D100 Classification as per AS/NZS 2293.3 >> Battery capable to replace upon requirements >> Precise optical design to compliant with IEC EN1838 requirement >> Ultra-low stand-by power consumption. >> Self-contained luminaries with manual test,self test, and DALI test. >> Em+Smartch™ battery charge technologies : over-charge, over-current, short-circuit and deep discharge protection for battery >> Two color optional: white and black >> Recessed ceiling mounted >> Poweriod™ LiFePO4 battery pack with standard 5 years warranty >> DALI 2.0 version is available upon request. 1.Automatically switch on emergency lighting: Built-in intelligent sensing system. Once the power failure is detected, the lighting mode will be turned on automatically without human intervention.EM303 can quickly restore the brightness and provide multiple emergency brightness levels such as D63, D80 and D100, which not only protects the safety of individuals and their belongings, but also provides daily security.
2.High Brightness LED; Adopting high brightness LED lamp beads, the light is even and soft, and the irradiated area is large.
Energy-saving and environmentally friendly: LED light source with low energy consumption and long lifespan, reducing energy consumption and replacement costs. Supported by Emtrons Poweriod™ LiFePO4 6.4V 2.0Ah battery pack, it can guarantee at least three (3) hours of emergency battery life.3. Product Colour: The EM303 is available in white RAl 9016 and black RAL 9005 to suit a wide range of users.
Also by integrating the powerful DAL-2.0 protocol, the EM303 can effortlessly display different colour patterns, such as a green indicator when the system is normal and a red indicator when the battery is faulty. In short, the user can determine the status of the light at a glance.
4.EM303 is a rare DALl-2.0 LED emergency lighting fixture product in the industry, which achieves better compatibility, interoperability and dimming. EM303 separates the power supply and batteries into separate spaces to protect the batteries from heat, in addition, EM303 adopts Emtrons' patented heat sink, which effectively radiates the heat to the surrounding environment and provides LED lights with Provide heat dissipation support to prolong the service life and keep the light colour stable.
Installation:
Please follow the drawings for specific operations, and you can also contact us if you do not understand!
United KingdomTel：
+44 2084 323 088 +44 (0) 7908 2626 32
Add：
291 Brighton Road, South Croydon, CR2 6EQ, United Kingdom
E-mail：
Photometric data :
Application Scenarios:
Supermarkets, hotels, hospitals, schools, stadiums, production workshops, etc., the installation location of the main evacuation path, such as corridors, stairwells, exits, etc., set up sufficiently bright LED emergency lighting fixtures.
Sudden power outages automatically activate the emergency lighting becomes an indispensable security partner, the use of LED long-lasting features make this emergency lighting spotlight in critical moments can continue to provide light, can guarantee at least three (3) hours of emergency duration.Key words:- Bright led emergency spot lights with battery
- led emergency spot lights
- led emergency lights with battery backup
- bright emergency lights
-
