Led ceiling mount emergency hallway lights EM309
Product Overview
Led ceiling mount emergency hallway lights EM309
Relative Download
DOWNLOADProduct Features:
High Protection Grade IP65：
With IP65 protection rating, it can effectively prevent dust and moisture from entering, ensuring that led ceiling mount emergency hallway lights can work properly in humid and dusty environments.
Features a polycarbonate housing and Emtrons high efficiency heat sink:
Adopting high-quality polycarbonate material to make the shell, with high quality impact resistance and heat resistance, to ensure that the emergency lighting fixtures have the capacity to maintain stable operation in harsh environments.
Configuration of high efficiency heat sink, through scientific heat dissipation design, effectively reduce the internal temperature of the Led ceiling mounted emergency hallway light, prolong the service life of the led light source.
Ultra-low standby power consumption：
In the non-emergency state, Led ceiling mount emergency hallway lights keep the bottom standby power consumption, energy saving and environmental protection, colleagues to reduce unnecessary energy waste.
Multi-color and mounting options：
Provide white RAL9016 and black RAL 9005 two colors to choose from, to meet different decoration styles.
Optional pole mounting for flexible adaptation to different installation scenarios.
Comprehensive testing functions：
Support manual testing, automatic testing and DALI2.0 centralized monitoring to ensure that the emergency equipment is intact and can support the provision of adequate lighting duration and brightness in emergency situations.
Two emergency luminaire status modes are supported：
Maintenance and non-maintenance modes.
Technical Parameters:
| >> Rated working voltage: 220-240V, 50/60Hz. |
| >> Working loads on mains power: Max 3W. |
| >> Emergency Power: 2W, 2.5W, 3W, 4W. |
| >> LUMILEDS LED chips, CCT 5,700K. |
| >> Polycarbonate enclosure housing and die casting heat sink. |
| >>D63/D80/D100/D125 as per AS/NZS 2293.3 standard. |
| >> Precise optical design to compliant with lEC EN1838 requirement. |
| >> Ultra-low stand-by power consumption. |
| >> Self-contained luminaries with manual-test, self-test and dali-test function. |
| >> Em+Smartch" battery charge technologies : over-charge, over-current, short-cir-cuit and deep discharge protection for battery. |
| >> Two color optional: white and black. |
| >> Wall, ceiling and rod mounting are available. |
| >> Poweriod" LiFeP04 battery pack with standard 5 years warranty. |
| >> DALl 2.0 version is available. |
Product Mix:

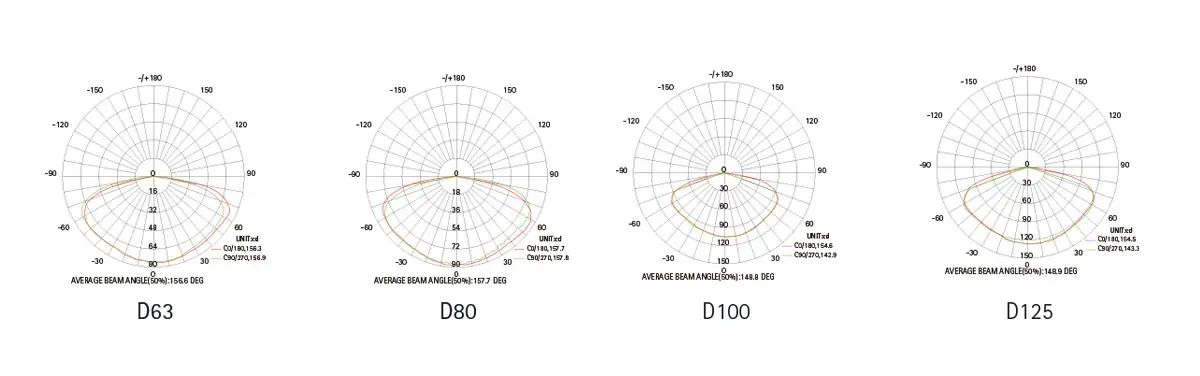

Light Source Data:
Application Acenario：
Led ceiling mount emergency hallway lights are widely used with corridors, passages, narrow spaces in the hallway. led maintained emergency lighting fixtures are suitable for regular inspection and maintenance of places, schools, hospitals, etc. non maintained emergency luminaire is suitable for difficult to access the Higher cost places, such as high floor building corridors and so on.
- Product Description
- 图标
-
- Commodity name: Led ceiling mount emergency hallway lights EM309

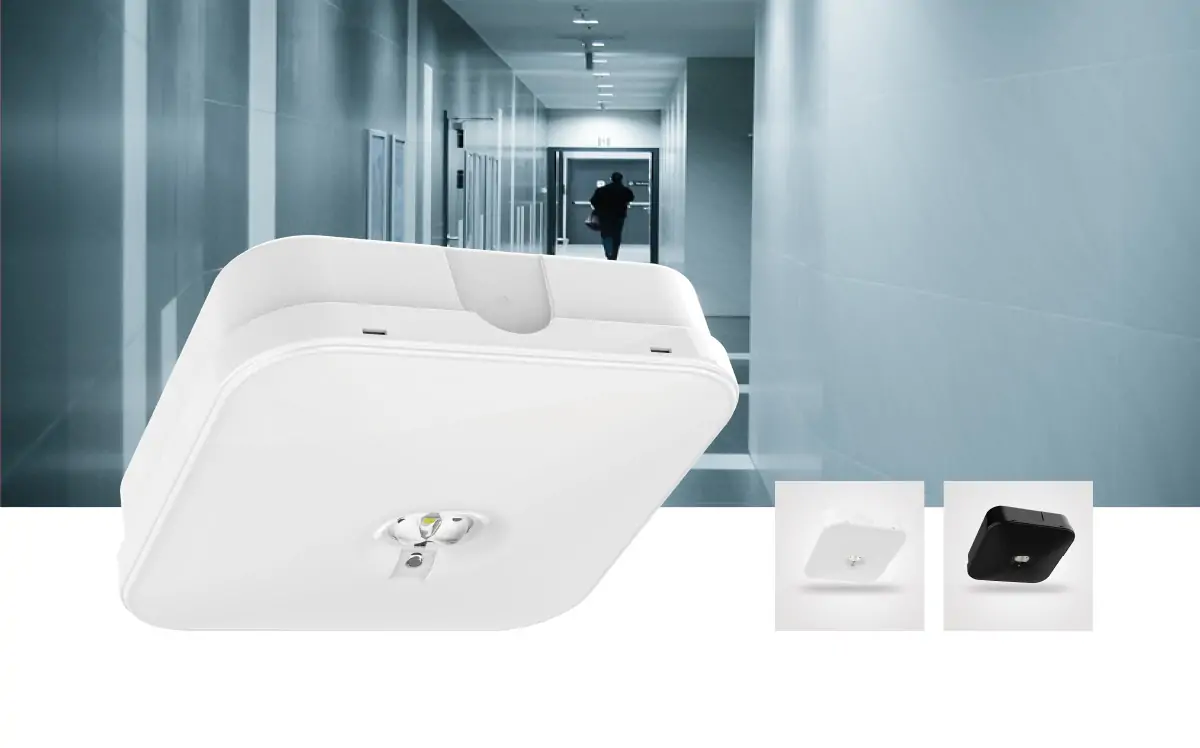

Emtrons led ceiling mount emergency hallway lights EM309 is a unique emergency lighting fixture that can be used as both a downlight and a ceiling light. It is equipped with the latest generation of LiFePO4 (Lithium Iron Phosphate) batteries and emergency driver, and is IP65 rated for square ceiling mounting.
Product Features:
High Protection Grade IP65：
With IP65 protection rating, it can effectively prevent dust and moisture from entering, ensuring that led ceiling mount emergency hallway lights can work properly in humid and dusty environments.
Features a polycarbonate housing and Emtrons high efficiency heat sink:
Adopting high-quality polycarbonate material to make the shell, with high quality impact resistance and heat resistance, to ensure that the emergency lighting fixtures have the capacity to maintain stable operation in harsh environments.
Configuration of high efficiency heat sink, through scientific heat dissipation design, effectively reduce the internal temperature of the Led ceiling mounted emergency hallway light, prolong the service life of the led light source.
Ultra-low standby power consumption：In the non-emergency state, Led ceiling mount emergency hallway lights keep the bottom standby power consumption, energy saving and environmental protection, colleagues to reduce unnecessary energy waste.
Multi-color and mounting options：
Provide white RAL9016 and black RAL 9005 two colors to choose from, to meet different decoration styles.
Optional pole mounting for flexible adaptation to different installation scenarios.Comprehensive testing functions：
Support manual testing, automatic testing and DALI2.0 centralized monitoring to ensure that the emergency equipment is intact and can support the provision of adequate lighting duration and brightness in emergency situations.
Two emergency luminaire status modes are supported：
Maintenance and non-maintenance modes.
Technical Parameters:
>> Rated working voltage: 220-240V, 50/60Hz. >> Working loads on mains power: Max 3W. >> Emergency Power: 2W, 2.5W, 3W, 4W. >> LUMILEDS LED chips, CCT 5,700K. >> Polycarbonate enclosure housing and die casting heat sink. >>D63/D80/D100/D125 as per AS/NZS 2293.3 standard. >> Precise optical design to compliant with lEC EN1838 requirement. >> Ultra-low stand-by power consumption. >> Self-contained luminaries with manual-test, self-test and dali-test function. >> Em+Smartch" battery charge technologies : over-charge, over-current, short-cir-cuit and deep discharge protection for battery. >> Two color optional: white and black. >> Wall, ceiling and rod mounting are available. >> Poweriod" LiFeP04 battery pack with standard 5 years warranty. >> DALl 2.0 version is available. Product Mix:
Light Source Data:
Application Acenario：
Led ceiling mount emergency hallway lights are widely used with corridors, passages, narrow spaces in the hallway. led maintained emergency lighting fixtures are suitable for regular inspection and maintenance of places, schools, hospitals, etc. non maintained emergency luminaire is suitable for difficult to access the Higher cost places, such as high floor building corridors and so on.
Key words:- led ceiling mount emergency hallway lights
- EM309
- led ceiling mount emergency hallway lights EM309
- non maintained emergency luminaire
