Maintenance free ceiling led emergency lights IP54 Emergency lighting EM330
Product Overview
Maintenance free ceiling led emergency lights IP54 Emergency lighting EM330
Relative Download
DOWNLOAD
Product Features：

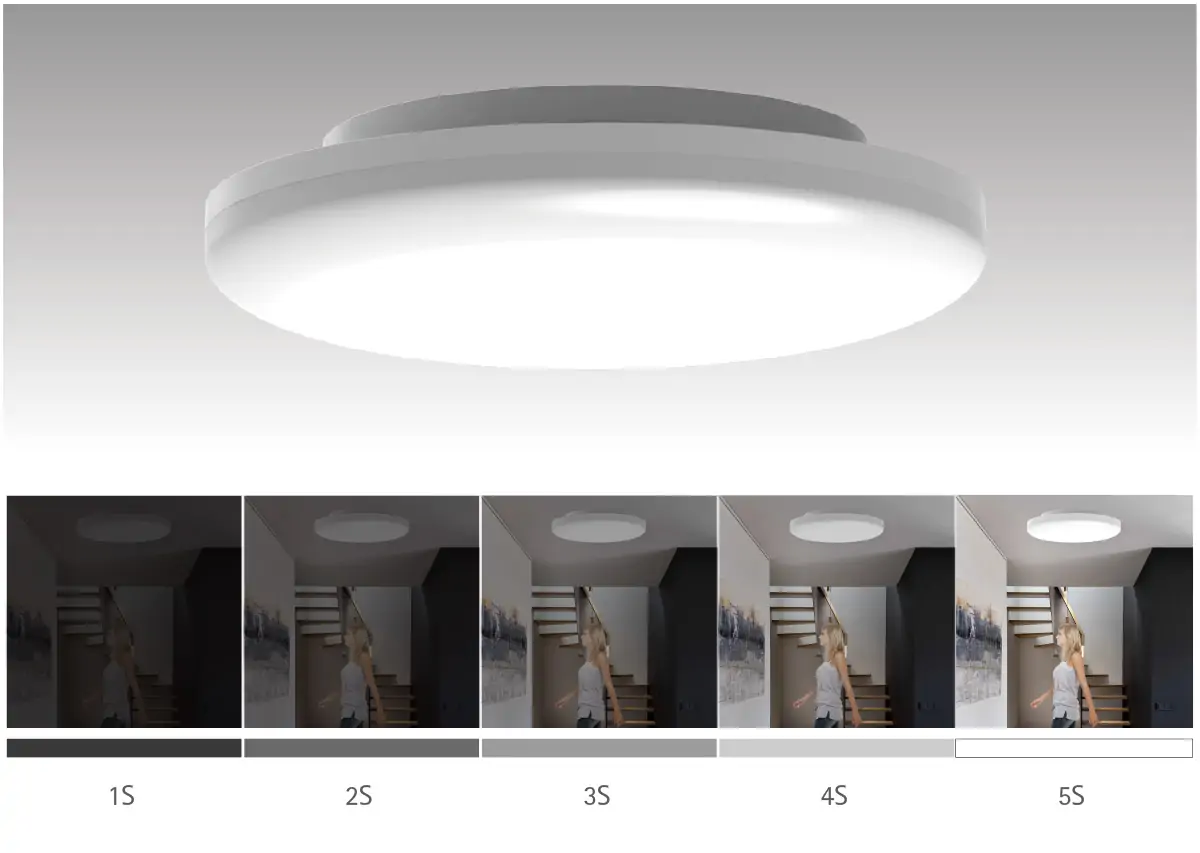

| >> Soft start with pre-programmed configuration: gradually 100% brightness in 5 seconds |
| >> Tools-free easy installation, easy cabling |
| >> Self-contained emergency, default version is manual test |
| >> 99% block harmful blue lights protection, RG0 grade |
| >> CRI>95 |
| >> 3000K/4000K/6000K CCT DIP selectable, power Tunable |
| >> UL94 V0 grade PC closure, high temperature resistance, anti-corrosion |
| >> IP54 waterproof |
| >> LUMILEDS LED chip, 100,000 hours lifespan |

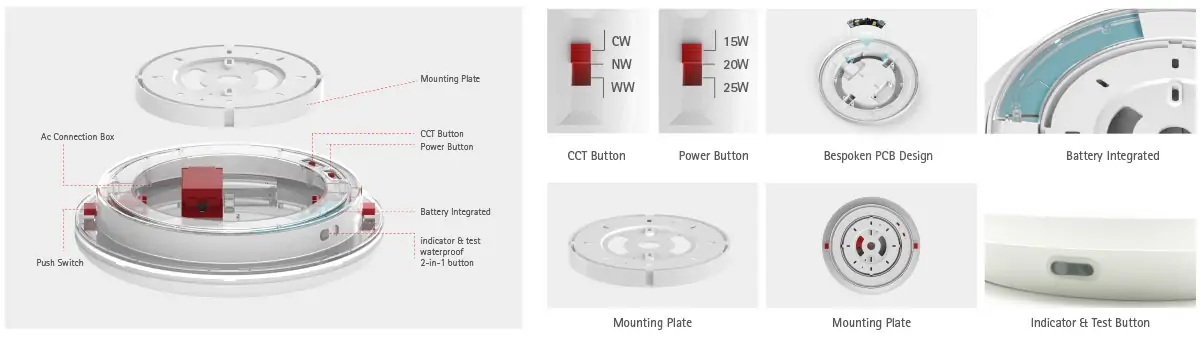

| >> Indicator and test bottom integration |
| >> Em+Smartch™ battery charge technologies: over-charge, over-current, short-cir and deep discharge protection for battery |
| >> Poweriod™ LiFePO4 battery pack with standard 5 years warranty |
| >> DALI 2.0 emergency is available upon on request |
1. Dustproof and waterproof characteristics: IP54 is a kind of protection level marking corresponding to emergency lights lamps and lanterns, in which IP stands for INGRESS PROTECTION, and the data ‘54’ corresponds to the specific level of dustproof and waterproof respectively.
Dust protection class 5 (IP5X): indicates that the device can prevent most of the dust from entering its interior, but can not completely prevent the entry of dust.
Waterproof rating 4 (IPX4): indicates that the device can prevent part of the water from all directions from intruding into the interior, but can not completely prevent the protection.
If for dustproof waterproof emergency lighting requirements all prevention, you can go to see our EM310. protection against dust IP65.
2: Maintenance-free should lighting fixtures: through the maintenance-free design reduces the user's maintenance costs and difficulties, the light source, power supply, control circuits and other components integrated into one, reducing the need for maintenance due to loose or damaged components. Meanwhile, it adopts optical module and lens technology, as well as highly LED as the luminous light source, which makes the light soft and not harsh.
3. Convenient Installation: Adopting ceiling mounted design, it can be easily installed on the ceiling through fixed bracket and wire connection. The appropriate height can ensure the best lighting range and effect, without the need for complex wiring or installation tools.

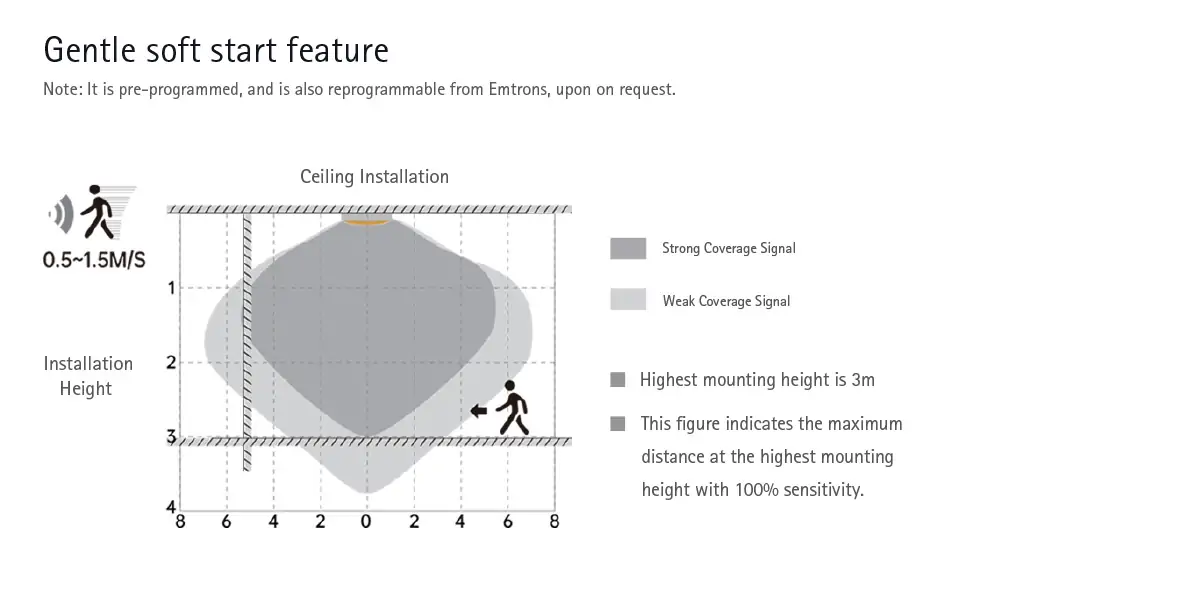

4. Energy saving and consumption reduction: The built-in intelligent radar can accurately sense the surrounding light intensity and human activity, so as to intelligently adjust the lighting state. In the dim light or feel the human body activity when 5S express to 100 brightness, and in the light rush automatically shut down to save energy.
product mix:

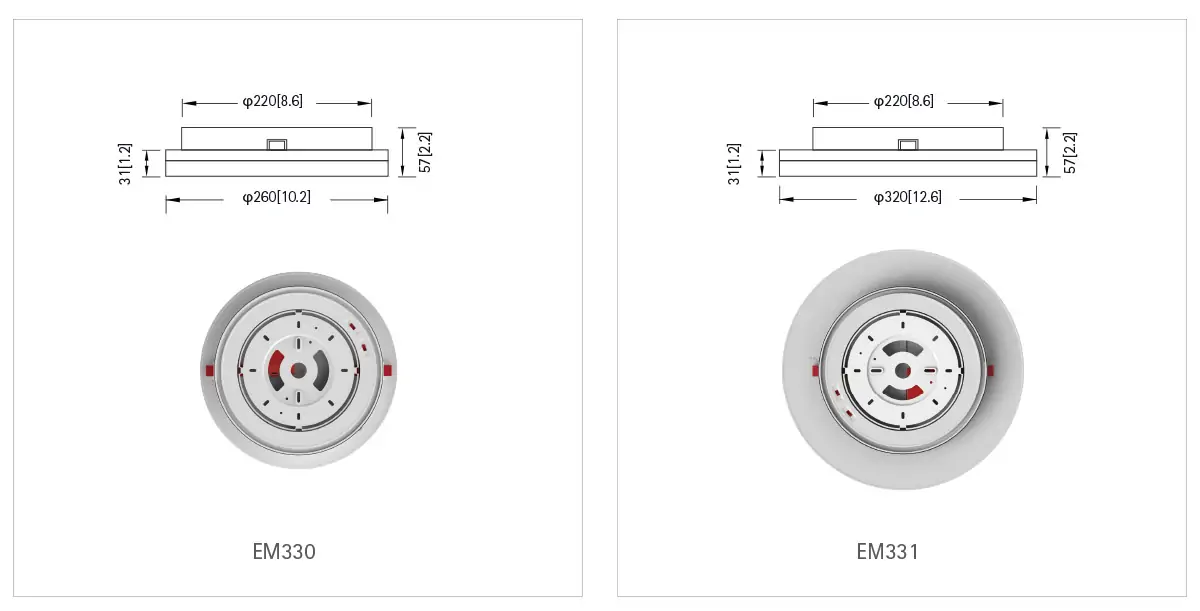

Product Size:
Emergency Scenarios:
emergency lights for home:The maintenance free ceiling led emergency lights IP54 Emergency lighting EM330 can be used in personal residence bedrooms, balconies, toilets, corridors, etc.
For indoor places and other customers are relatively familiar with the field, EM330 can be used as a normal light to provide brightness for the room, but also in the emergency state slowly illuminate, will not stimulate the customer's eyes because of strong light, use the better feeling.
Hospital ward led emergency lights:The EM330 used in hospital wards and other medical places, for patients over the light intensity of the emergency lighting is more likely to cause panic, causing unnecessary accidents, slowly illuminated maintenance free ceiling led emergency lights EM330 is more suitable for use in the ward.
- Product Description
- 图标
-
- Commodity name: Maintenance free ceiling led emergency lights IP54 Emergency lighting EM330
EM330 is a smart sensor LED ceiling mounted emergency light designed by Emtrons, which not only achieves the purpose of energy saving and consumption reduction but also has the convenience of installation, which can be easily installed without tools.
Product Features：
>> Soft start with pre-programmed configuration: gradually 100% brightness in 5 seconds >> Tools-free easy installation, easy cabling >> Self-contained emergency, default version is manual test >> 99% block harmful blue lights protection, RG0 grade >> CRI>95 >> 3000K/4000K/6000K CCT DIP selectable, power Tunable >> UL94 V0 grade PC closure, high temperature resistance, anti-corrosion >> IP54 waterproof >> LUMILEDS LED chip, 100,000 hours lifespan >> Indicator and test bottom integration >> Em+Smartch™ battery charge technologies: over-charge, over-current, short-cir and deep discharge protection for battery >> Poweriod™ LiFePO4 battery pack with standard 5 years warranty >> DALI 2.0 emergency is available upon on request 1. Dustproof and waterproof characteristics: IP54 is a kind of protection level marking corresponding to emergency lights lamps and lanterns, in which IP stands for INGRESS PROTECTION, and the data ‘54’ corresponds to the specific level of dustproof and waterproof respectively.
Dust protection class 5 (IP5X): indicates that the device can prevent most of the dust from entering its interior, but can not completely prevent the entry of dust.
Waterproof rating 4 (IPX4): indicates that the device can prevent part of the water from all directions from intruding into the interior, but can not completely prevent the protection.
If for dustproof waterproof emergency lighting requirements all prevention, you can go to see our EM310. protection against dust IP65.
2: Maintenance-free should lighting fixtures: through the maintenance-free design reduces the user's maintenance costs and difficulties, the light source, power supply, control circuits and other components integrated into one, reducing the need for maintenance due to loose or damaged components. Meanwhile, it adopts optical module and lens technology, as well as highly LED as the luminous light source, which makes the light soft and not harsh.
3. Convenient Installation: Adopting ceiling mounted design, it can be easily installed on the ceiling through fixed bracket and wire connection. The appropriate height can ensure the best lighting range and effect, without the need for complex wiring or installation tools.
4. Energy saving and consumption reduction: The built-in intelligent radar can accurately sense the surrounding light intensity and human activity, so as to intelligently adjust the lighting state. In the dim light or feel the human body activity when 5S express to 100 brightness, and in the light rush automatically shut down to save energy.
product mix:
Product Size:
Emergency Scenarios:
emergency lights for home:The maintenance free ceiling led emergency lights IP54 Emergency lighting EM330 can be used in personal residence bedrooms, balconies, toilets, corridors, etc.
For indoor places and other customers are relatively familiar with the field, EM330 can be used as a normal light to provide brightness for the room, but also in the emergency state slowly illuminate, will not stimulate the customer's eyes because of strong light, use the better feeling.
Hospital ward led emergency lights:The EM330 used in hospital wards and other medical places, for patients over the light intensity of the emergency lighting is more likely to cause panic, causing unnecessary accidents, slowly illuminated maintenance free ceiling led emergency lights EM330 is more suitable for use in the ward.
